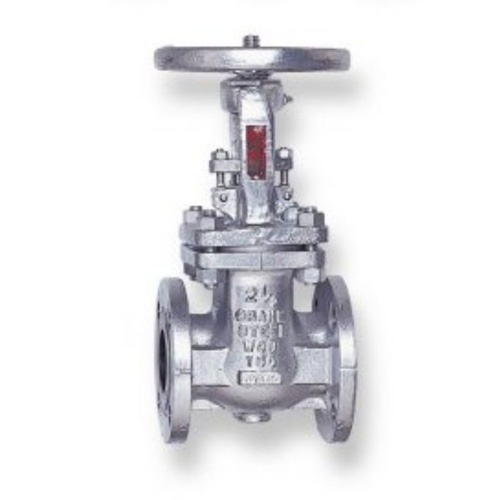

Van cửa Gate Valve cỡ 10" inch nối Bích RF CRANE 47XUF 10 GATE 10 150# WCB RF HFS BB

Van cửa Gate Valve cỡ 10" inch nối Bích RF CRANE 47XUF 10 GATE 10 150# WCB RF HFS BB

BOLTED BONNET GATE VALVES  SIZE : 10 IN
DESIGN SPECS OF VALVES : API 602
DESIGN SPECS OF END FLANGES : ASME B16.5
PRESSURE DESIGNATION : CLASS 150
TYPE OF WEDGE: FLEXIBLE
TYPE OF STEM: OUTSIDE SCREW AND YOKE/R.S.N.R.O
TYPE OF BONNET : BOLTED FACING,
FLANGE: RAISED FACE
MATERIAL OF BODY: CARBON STEEL
MATERIAL OF, TRIM: ALLOY STEEL(F6)/FULL HARD FACED
MATERIAL OF PACKING, STEM :GRAPHITE
MATERIAL SPEC BODY :ASTM A216 GRADE WCB
MATERIAL  SPECS OF RING JOINT  GASKET :SOFT IRON
MATERIAL OF  BOLTS: ASTM A193 GRADE B7
MATERIAL OF NUTS : ASTM A194 GRADE 2H
SIZE : 10 IN
TEST STANDARD:API 598,
TRIM NUMBER: 8
